The Role of PID Controllers in Burner Management Solutions

What is a PID Controller?

PID controllers, or Proportional-Integral-Derivative controllers, play an essential role in temperature regulation for industrial heating systems. Used widely in burner management systems (BMS), PID technology helps maintain precise control over process variables, such as temperature, ensuring optimal performance and safety in industrial applications. This article breaks down the principles of PID controllers, how they work, and the benefits they offer within the advanced BMS Controllers developed here at Profire.

A PID controller utilizes a feedback control loop mechanism to regulate process variables like temperature. PID process control helps maintain these variables at a desired setpoint by adjusting outputs based on three actions—proportional, integral, and derivative. This dynamic adjustment ensures smooth operation and precise control, even in complex industrial systems.

Within burner management systems, PID controllers monitor and react to temperature changes, adjusting fuel flow to burners as needed. By interpreting input signals from thermocouples or other sensors, the PID controller ensures industrial equipment operates efficiently, reducing risks like overheating or temperature instability.

How Do PID Controllers Work?

A system monitoring feedback loop is the heart of a PID controller. Here’s how the process works:

• Error Calculation: The controller compares the current temperature (or other process variables) against the desired setpoint to determine an error value.
• Proportional Action: The controller addresses the error, regardless of setpoint, providing an immediate response proportional to the error size. A smaller proportional band results in a quicker reaction, but may lead to overshooting, while a larger band produces slower, steadier corrections.
• Integral Action: The integral term addresses the accumulation of past errors over time, working to bring the process variable (PV) back to its setpoint. By eliminating steady-state errors, it accelerates the system’s convergence to the desired value.
• Derivative Action: The derivative term predicts future changes by analyzing the rate at which errors evolve. This proactive response helps stabilize the system and minimizes large output fluctuations. It is most effective for slower processes, but can negatively affect systems that respond quickly.

The proportional, integral, and derivative factors work together to fine-tune the overall system response, ensuring efficient and reliable control.

System Damping Types

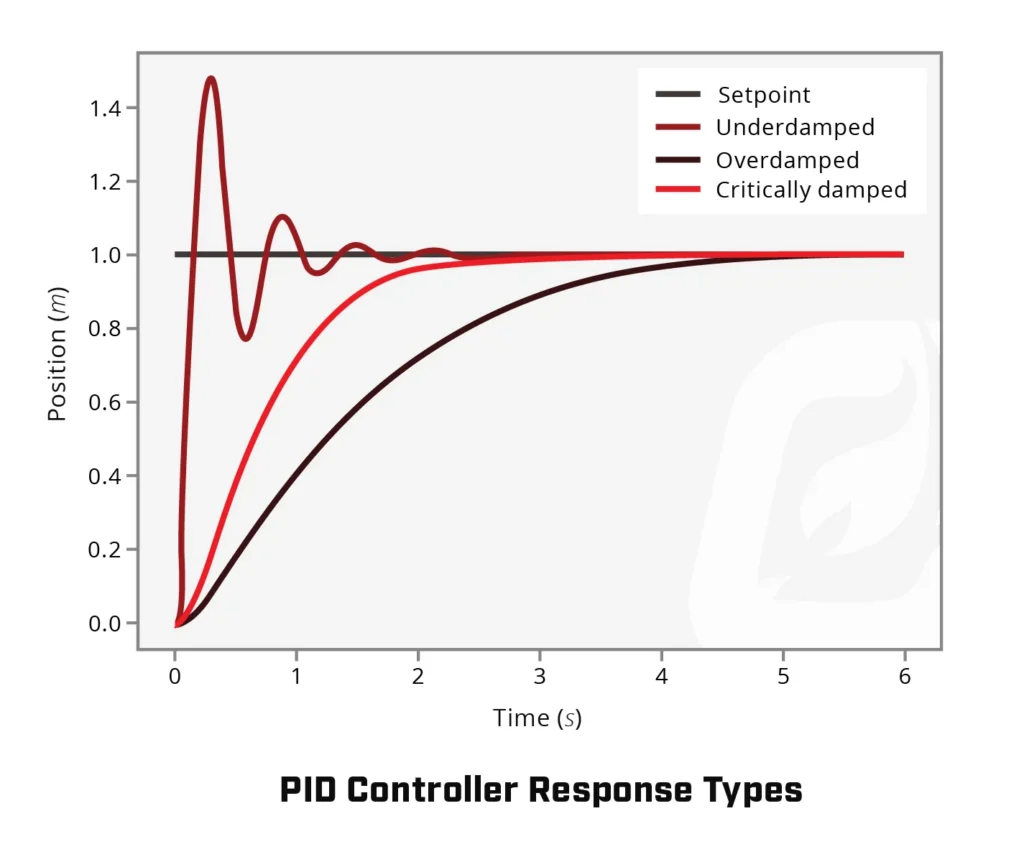

PID systems can produce different responses based on tuning:

• Under-Damped: Fast response, but with oscillations around the setpoint.
• Over-Damped: Stable and slow return to the setpoint, with minimal oscillation.
• Critically Damped: Combines rapid response with minimal overshooting, ideal for most industrial applications.

Cascading PID Controllers for Enhanced Performance

Profire systems, like the PF3100 and PF2200 Series BMS Controllers, are designed for precise control in complex systems. With a cascading PID controller, you get reliable, fine-tuned performance you can count on. Here’s how it works:

• The outer controller regulates the process temperature using a thermocouple placed at a critical point, like the heater outlet. This ensures precise control and improves system responsiveness to meet process needs efficiently.
• The inner controller directly manages the heater’s temperature through a thermocouple attached to the heater, providing real-time adjustments.

By cascading these loops, the outer PID sets the target temperature for the inner PID, which fine-tunes the heater’s operation to achieve optimal results. This configuration enables faster, more accurate adjustments, accounting for variables like thermal mass and heat transfer rates.

Why Choose a PID Controller?

PID controllers are vital for keeping your processes stable and efficient, ensuring precise control over variables like pressure, temperature, and flow. Whether you’re managing industrial heating systems or other complex operations, PID controllers deliver reliable, consistent performance that minimizes downtime and maximizes productivity. Here’s how they can make a difference for your operation:

• Precision and Efficiency: They keep temperatures steady and consistent, ensuring your processes run smoothly and efficiently.
• Flexibility: They easily adjust proportional, integral, and derivative parameters to tailor performance to your unique applications.
• Reliability: They’re built to thrive in tough industrial environments and are engineered for long-term, dependable operation.
• Enhanced Control: Their cascade loop capabilities ensure faster response and greater stability, even in systems with complex heat dynamics.
• Low Maintenance: Engineered for optimal efficiency, they reduce system downtime and significantly minimize maintenance needs.

Whether you’re managing large-scale production heating systems or specialized applications, our PID controllers help you meet safety, compliance, and performance standards with confidence.

Applications in Burner Management Systems

PID controllers are essential for maintaining precise temperature control in industrial heating processes, ensuring optimal performance and safety. These controllers are widely used in various applications, including:

• Oil & Gas production: They regulate temperatures during extraction and processing in the upstream, midstream, and downstream sectors.
• Petrochemical manufacturing: They control critical heating processes to meet production requirements and maintain product quality.
• Thermal fluid heaters: They provide accurate temperature control for systems that rely on heat transfer fluids in industrial operations.
• Combustion systems: They enhance performance and reduce volatile emissions by optimizing the combustion process in burners and boilers.

By integrating Profire PID controllers into your burner management systems, you can achieve greater energy efficiency, reduce operational downtime, and enhance overall safety. These controllers ensure reliable temperature regulation, making them a valuable addition to various industrial and manufacturing processes involving thermal heating applications.
