A BMS is central to safety, reliability, and compliance in industrial heating systems.
A burner management system handles the required safety steps before, during, and after ignition. It controls key burner functions, reduces risk, and helps maintain compliance for direct- and indirect-fired vessels. A BMS manages startup sequencing, shutdown procedures, flame monitoring, and lockout logic so the burner only fires when conditions are safe. Flame detectors, safety shutoff valves, and control logic automate these functions to reduce human error and improve reliability. When configured correctly, a BMS strengthens safety, improves performance, and helps minimize downtime.
WHY A BURNER MANAGEMENT SYSTEM MATTERS
A burner management system ensures the safe startup, operation, and shutdown of industrial burners. Automation reduces operator workload by standardizing safety workflows and applying the same ignition logic every time. A BMS supports compliance by enforcing the sequences and safety rules required by NFPA 87 and other standards.
A BMS achieves this through:
SAFE OPERATIONS
Prevents fuel introduction under unsafe conditions to reduce flashbacks, delayed ignition, and over-fuel events.
OPTIMIZED OPERATIONS
Supports efficient operation with consistent startups and shutdowns that keep the burner running reliably.
MINIMIZED DOWNTIME
Reduces manual intervention and lowers the chance of error so equipment stays online.
COMPLIANCE REQUIREMENTS
Helps facilities follow applicable industry standards, best practices, and environmental guidelines.
WHAT IS A COMBUSTION CONTROL SYSTEM (CCS)?
A combustion control system (CCS) manages air-to-fuel ratio, fuel valves, and process temperature or pressure to support efficiency and emissions reduction. A burner management system protects people and equipment by enforcing the safety logic for ignition, shutdown, and flame monitoring. Once the BMS completes the purge, proves permissives, and establishes flame, the CCS takes over to manage airflow, fuel flow, and firing rate during normal operation.
At Profire, BMS and CCS capabilities work together as a comprehensive combustion management system (CMS) in controllers like the PF2200 for basic control and the PF3100 for advanced firing control. These platforms support safe, efficient operation in systems that require both burner and combustion management.
A BMS oversees several essential functions that keep burners operating safely, reliably, and efficiently.
WHAT DOES A BURNER MANAGEMENT SYSTEM DO?
A fully automated BMS, powered by a controller, ensures safe burner operation from ignition through shutdown while supporting standards such as NFPA 87, CSA B149.3, IEC 61508, UL 60730-2-5, or other site requirements.
Generally, a BMS does not adjust fuel flow or firing rates after ignition. Its role is to execute safety logic, verify permissives, monitor flame, and coordinate shutdown conditions. Some BMS systems that feature combustion control can regulate fuel flow and firing rates after ignition as part of a Combustion Management System.
These steps outline how a BMS enables safe and reliable operation:

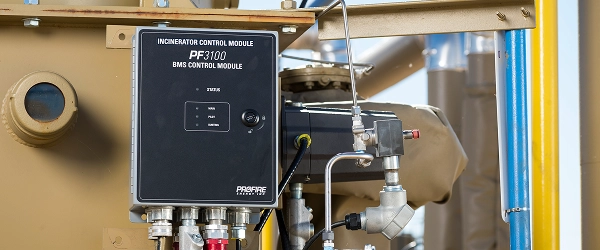

1. Check System
Checks interlocks, sensors, and safety devices before ignition. Any failed condition prevents fuel introduction.
2. Purge the System
Confirms that purge requirements are met before allowing fuel introduction, reducing explosion risk and supporting safe startup.
3. Ignite the Pilot
Activates the ignitor and opens the pilot valve. Flame is verified within the programmed time window.
4. Start the Main Burner
Opens the main fuel valve under monitored conditions, then transitions to continuous oversight.

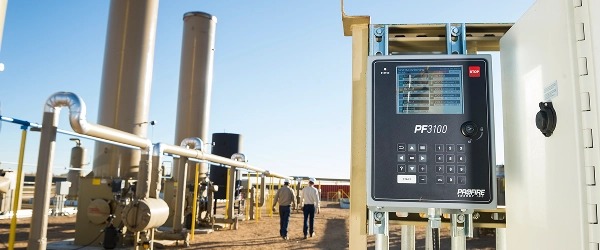

5. Monitor Continuously
Monitors flame, burner status, and safety inputs in real time. Unsafe conditions trigger a shutdown.

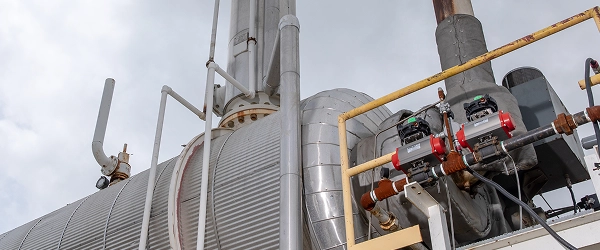

6. Shut Down Safely
Cuts fuel, confirms flame loss, and logs the event to ensure a safe and traceable shutdown.
THE KEY COMPONENTS OF A BURNER MANAGEMENT SYSTEM
A Burner Management System (BMS) uses sensors and control logic to ensure burners operate safely and in compliance with regulatory requirements. These components verify that fuel, airflow, pressure, and flame conditions are safe before ignition, preventing fuel from entering the system until all required permissives are met.
In addition to hardware, the BMS executes essential safety functions throughout operation, including interlocks, controlled startup and shutdown sequencing, flame verification, purge validation, and automatic fuel isolation when unsafe conditions are detected.
The following physical components support the BMS in validating safe operating conditions before ignition and during continuous flame monitoring:

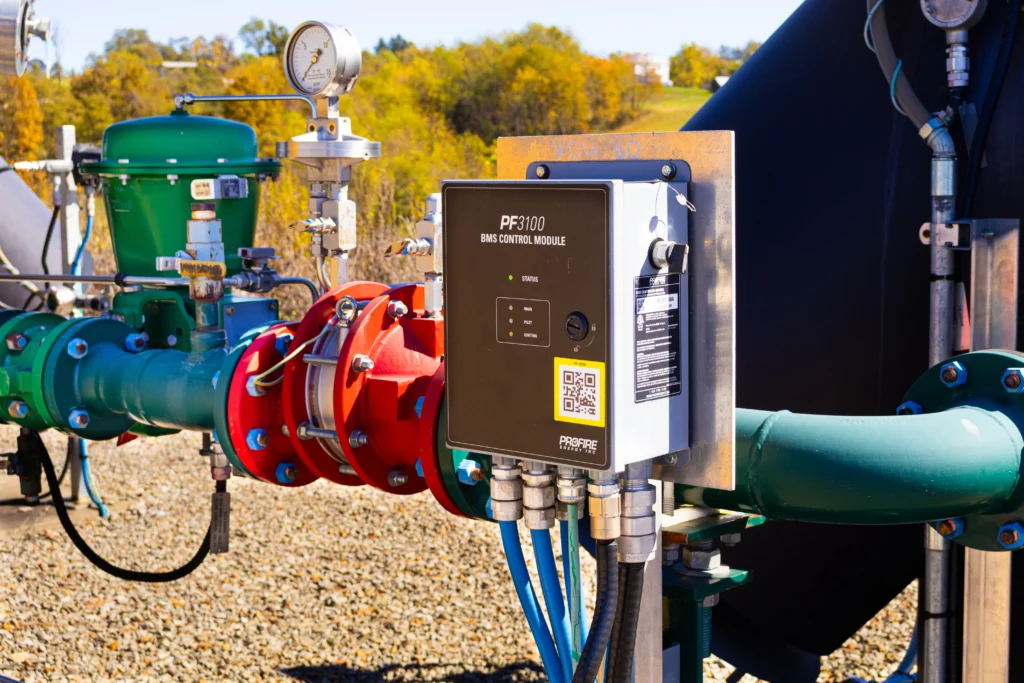

BMS Controller (Alarms & Annunciations)
Fuel Train (Safety Shutoff Valves, Control Valves, Regulators, Actuators, Solenoids, Unions, Gauges, and Restrictors)
The controller receives all sensor inputs, validates permissives, manages ignition and shutdown sequences, verifies interlocks, and handles diagnostics, alarms, and data logging. It coordinates all hardware to support safe burner operation and compliance with NFPA, CSA, and IEC standards.

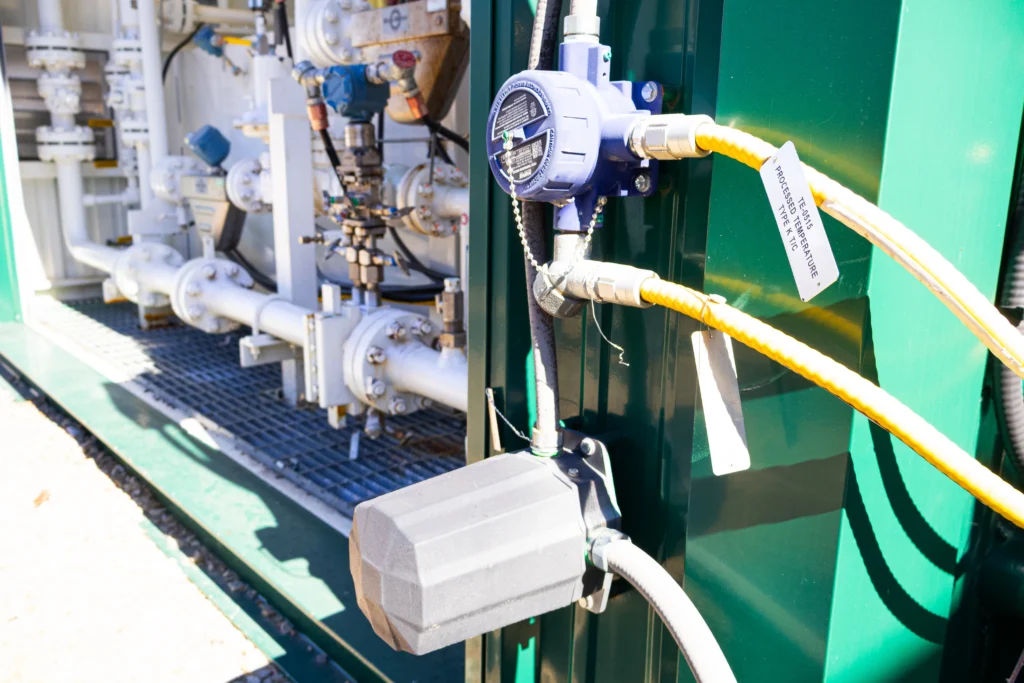

Flame sensors, thermocouples, pressure switches, and other transmitters monitor flame presence, fuel pressure, pilot status, airflow, and temperature. These inputs determine whether the burner is permitted to ignite or continue operating.

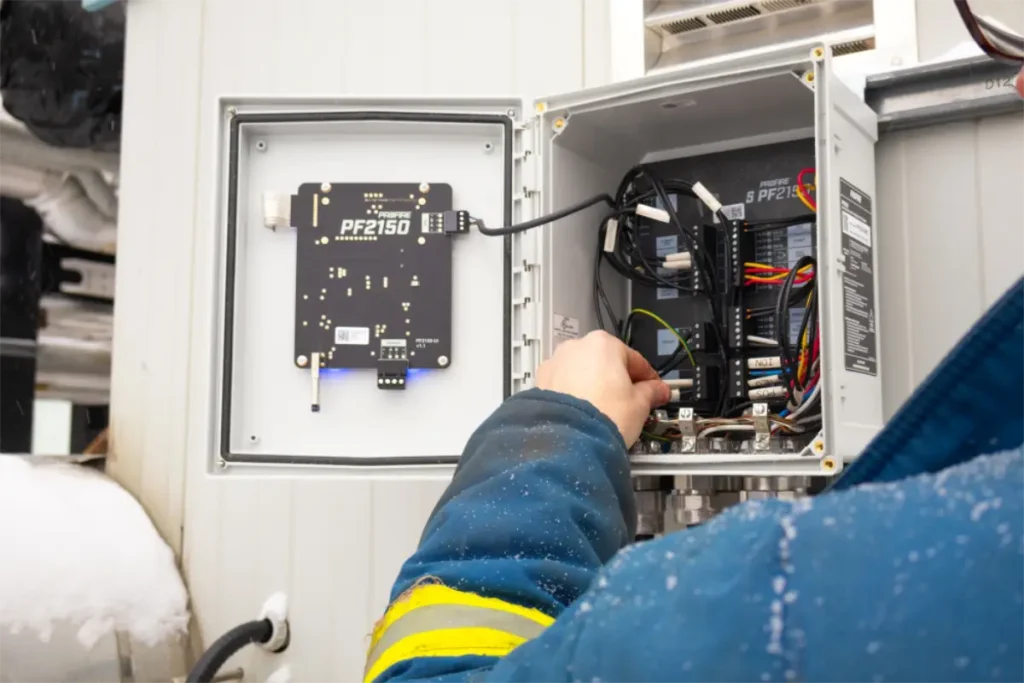

CONTROL LOGIC & SOFTWARE
The controller’s software applies safety rules, evaluates operating conditions, and manages combustion sequences. It ensures consistent operation, supports compliance, and strengthens reliability through continuous monitoring.
ACTUATORS, SOLENOIDS, & SAFETY SHUTOFF VALVES
Fast-acting, safety-rated shutoff valves, solenoids, and actuators respond to commands from the BMS. They isolate fuel during unsafe conditions and enable controlled transitions during startup, shutdown, or emergencies. Their reliability is critical to preventing fuel release when permissives are not met.

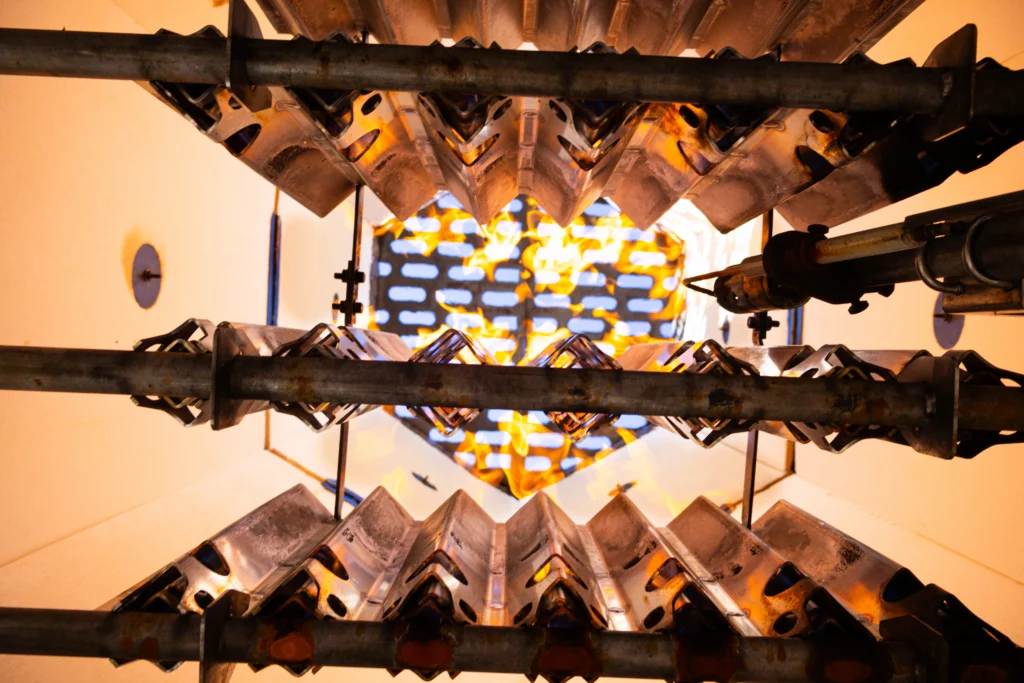

IGNITION & FLAME ESTABLISHMENT
The ignition system provides the pilot or direct ignition source that lights the burner. Working with flame detection equipment, it confirms flame stability before the main burner activates. These elements ensure safe, verifiable flame establishment.

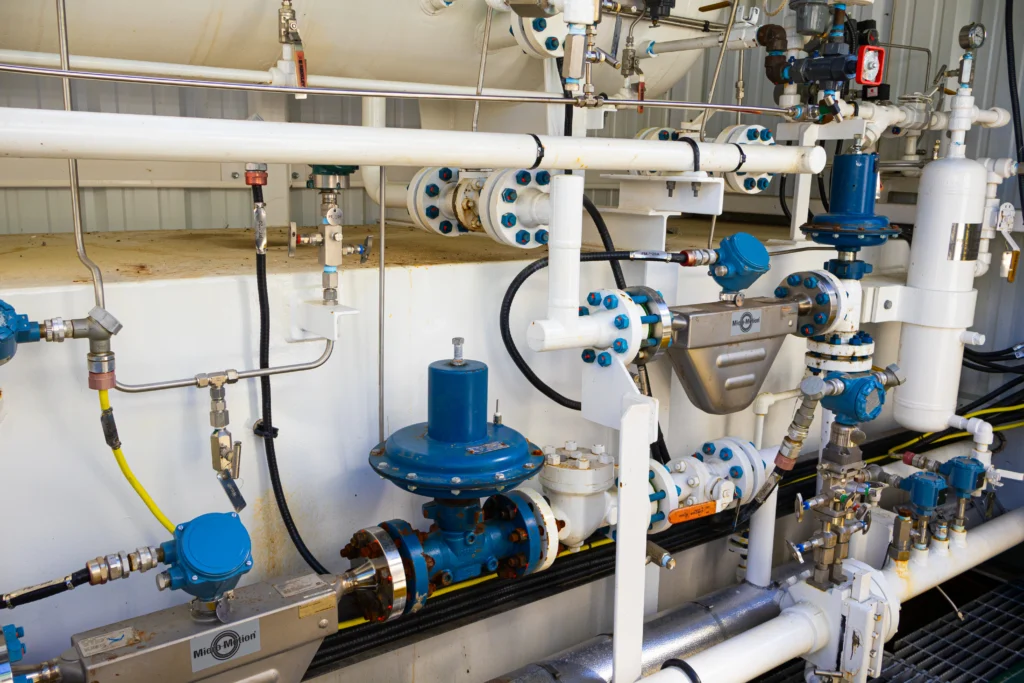

The fuel train regulates, conditions, and delivers fuel to the burner. Once ignition is verified, the main burner provides the controlled combustion needed for process heating. The BMS supervises the entire sequence to maintain safe operating conditions.
Safety interlocks ensure conditions are met in the correct order. Alarms notify operators about abnormal or unsafe states. The purge system clears combustible gases from the firebox before ignition to ensure a safe startup environment.
THE TYPES OF BURNER MANAGEMENT SYSTEMS
There are two primary types of burner management systems: automated and manual. Both are designed to enforce safe burner operation, but they differ significantly in how ignition is initiated, monitored, and restored following a flame failure. Automated systems reduce the need for manual intervention and support more consistent, repeatable operation, while manual systems depend heavily on operator action.
Automated
An automated burner management system controls burner ignition through a pre-determined safety sequence. The system verifies permissives, completes purge, energizes ignition, opens fuel valves, and confirms flame presence without requiring manual interaction at the burner. If a flame failure occurs, the automated BMS safely shuts off fuel, enforces purge requirements, and can automatically attempt re-ignition based on configured safety logic. This capability reduces downtime, improves consistency, and limits operator exposure during startup and recovery. Automated ignition and re-ignition ensure every burner startup follows the same validated process, improving repeatability and supporting safe, unattended operation.
Manual
Manual burner management systems require an operator to establish ignition at startup. Fuel and ignition are introduced manually, and flame presence must be visually or locally confirmed. In the event of a flame failure, manual systems do not support automatic re-ignition. The burner must be manually relit after shutdown. While manual systems may include basic safety devices, their reliance on operator intervention increases variability and limits their suitability for applications requiring frequent starts, remote operation, or rapid recovery from flame loss.
BENEFITS OF USING AN AUTOMATED BURNER MANAGEMENT SYSTEM
An automated BMS improves safety, efficiency, and operational consistency by managing the ignition and shutdown sequences that would otherwise rely on manual steps. Automation applies the same validated logic every time, reducing the human variability that can introduce risk. These systems continuously monitor key conditions, respond instantly to unsafe states, and support compliance requirements across various heating applications.
Profire’s PF2150, PF2200, and PF3100 controllers deliver these benefits with configurable safety logic and standardized ignition workflows. Each platform is engineered for Class I, Division 2 hazardous locations and built to support NFPA 87, IEC 60730-2-5, and CSA B149.3 requirements, giving operators a compliant framework for safe burner operation.
Our systems are designed to minimize risk, lower costs, and keep your operations running reliably. Here’s how we make it happen:
ENHANCE SAFETY
An automated BMS establishes a consistent safety baseline for every burner startup and operating cycle. Profire controllers monitor fuel pressure, flame status, airflow, temperature, and other key inputs in real time. If any value moves outside safe limits, the system isolates fuel and shuts down the burner to prevent escalation.
Integrated diagnostics help operators identify issues early, which improves situational awareness and prevents unplanned outages. These safety features work together to protect equipment, maintain stable combustion, and support safer field operations.
IMPROVE RELIABILITY
Automated permissives and structured safety sequencing reduce nuisance trips and improve burner uptime. A Profire BMS helps stabilize the heating process by minimizing temperature swings, fuel demand fluctuations, and unnecessary stops. Consistent logic, reduced manual intervention, and accurate detection ensure reliable burn cycles, reducing fuel waste, supporting emissions reduction, and maintaining steady system performance over time.

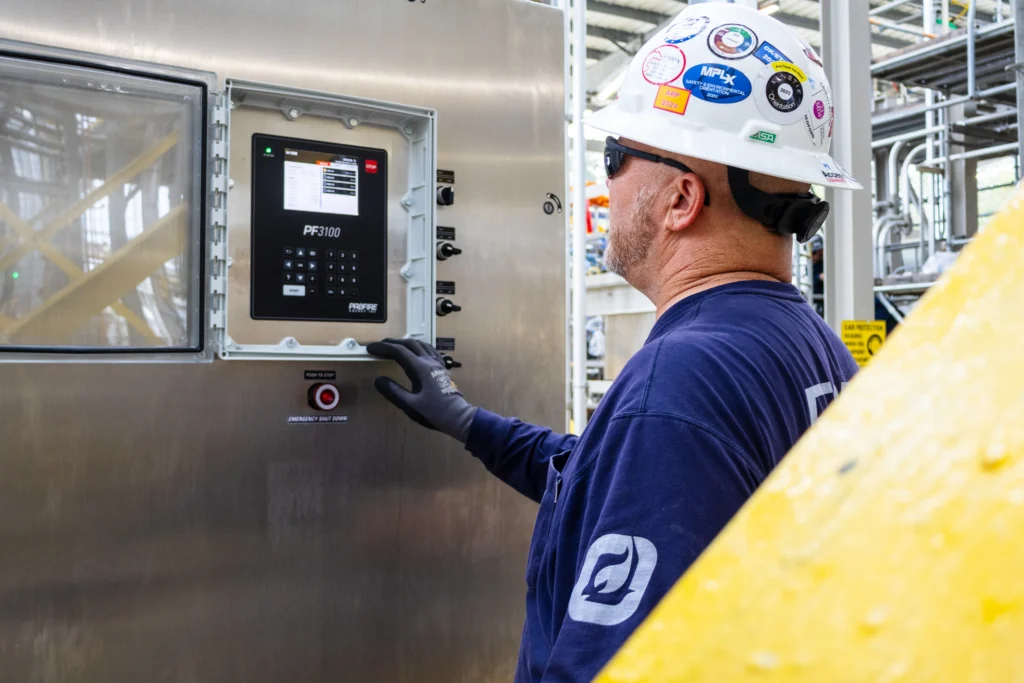

Profire controllers streamline burner oversight with clear interfaces and intuitive workflows. Operators can view burner status, diagnostics, and permissives directly on the BMS controller, reducing guesswork and improving response times.
Remote access features allow authorized personnel to monitor and adjust system conditions across dispersed sites. Standardized logic blocks and configurable settings simplify training and ensure every ignition sequence follows the same proven steps.
REGULATORY COMPLIANCE
Automated burner management systems (BMS) help facilities maintain compliance by consistently applying safety requirements and documenting system activity. A BMS enforces safe sequencing, validates permissives, and records alarms, events, and system states in a traceable format for audits, inspections, and safety reviews.

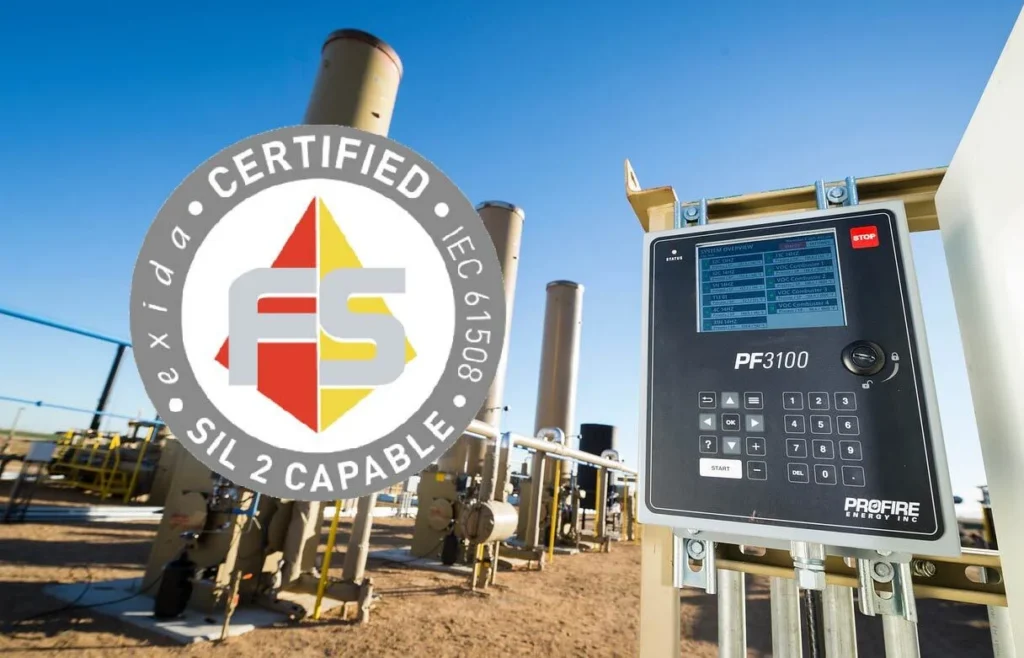

Profire controllers are designed for Class I, Division 2 hazardous locations and built to align with NFPA, CSA, UL, and other relevant standards. Their event logging, timestamped alarms, and clear sequencing records provide traceability, reduce the risk of non-compliant ignition attempts, and support adherence to environmental guidelines.

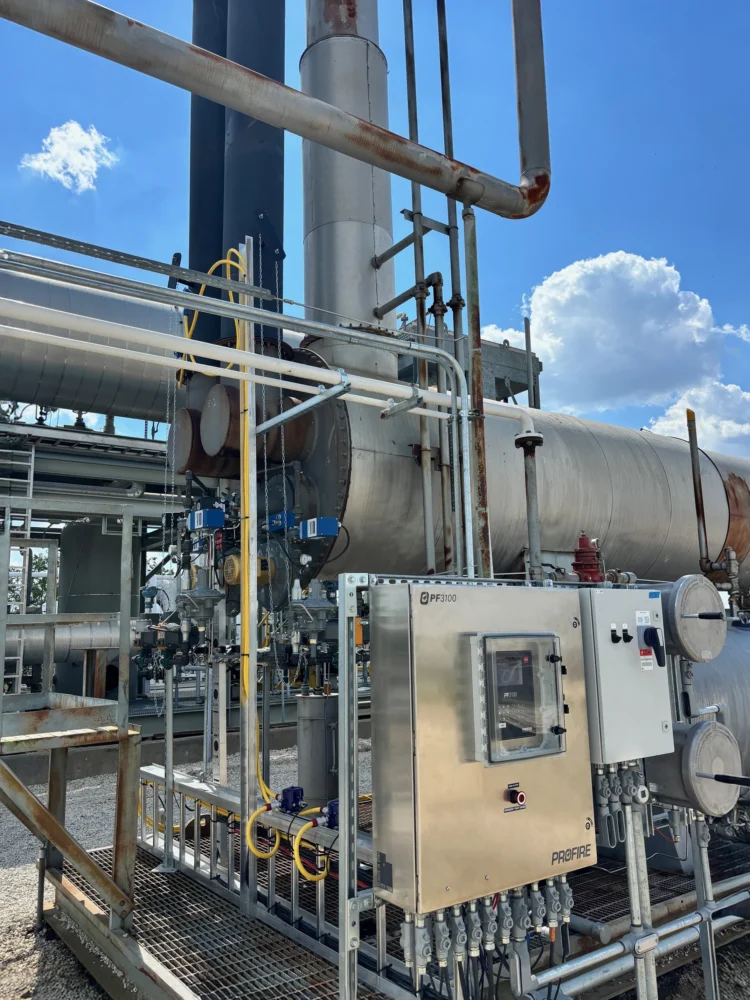

The PF3100 platform is engineered for systems that require configurable logic and room for expansion. Its modular architecture supports everything from single-burner skid units to multi-zone process heaters, without needing to redesign the control strategy.
With add-on modules, flexible I/O, and software-defined configurations, it’s easy to scale or adapt to new process requirements. This design approach extends system life, reduces engineering overhead, and allows facilities to evolve their heating systems without replacing core BMS hardware.
If you’re using a manual or outdated BMS, you’re missing out on key gains in safety, efficiency, and performance. Profire’s automated solutions close that gap by cutting emissions, reducing downtime, and improving reliability. Compare your options to find the controller that fits your operation.
