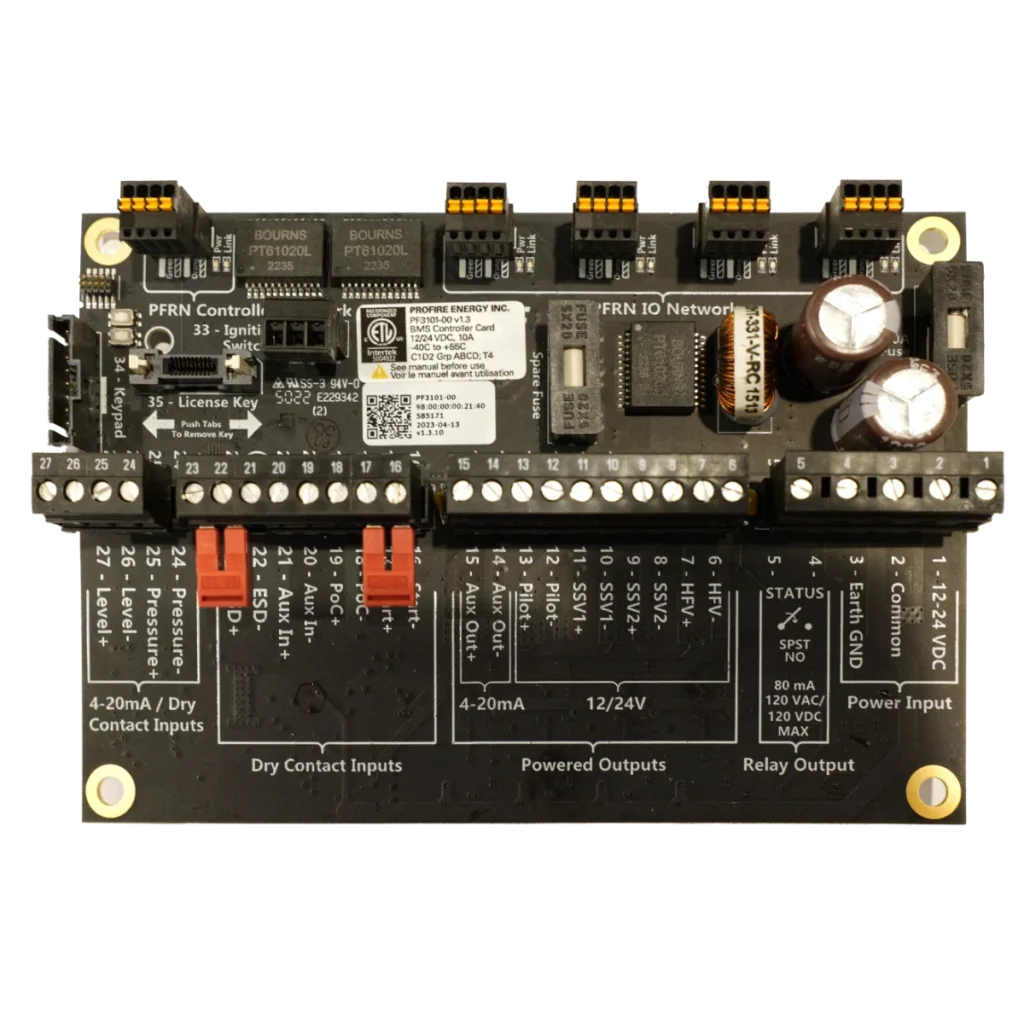

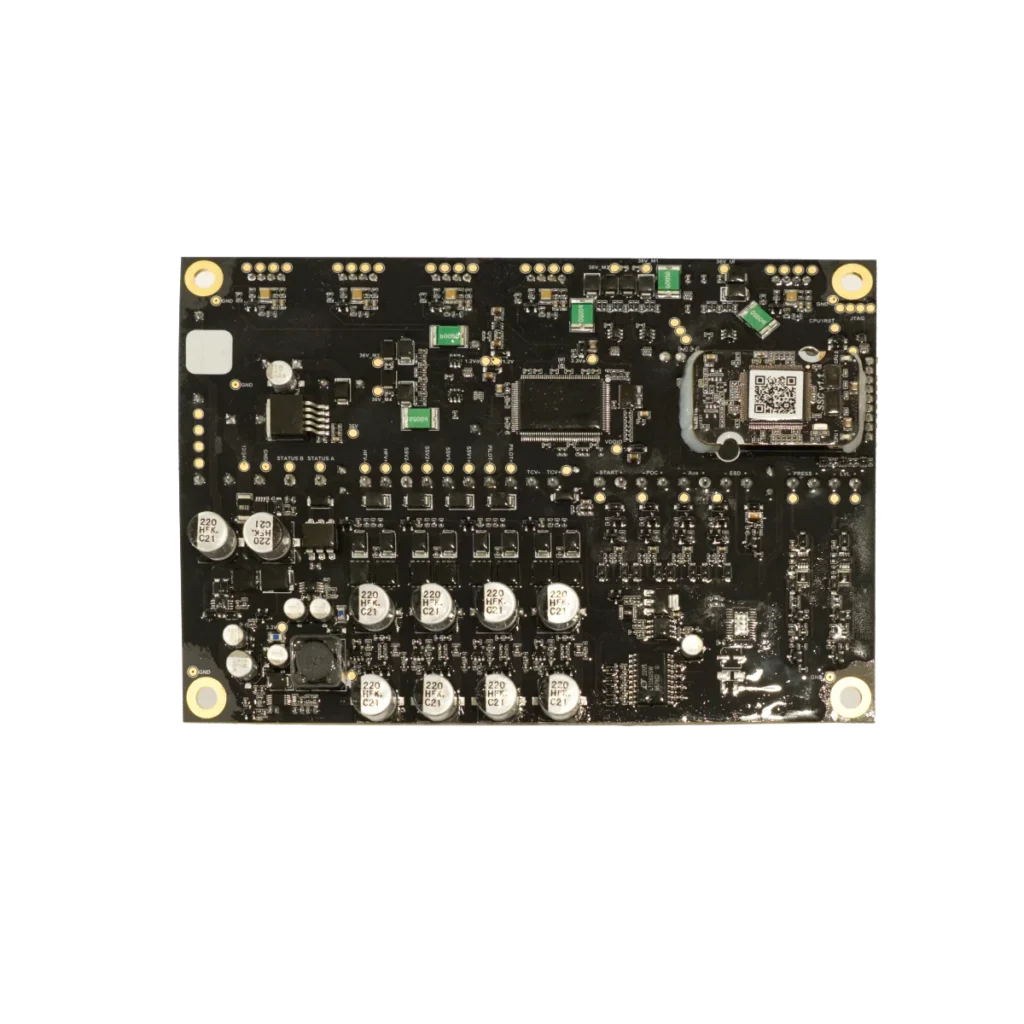

PF3101-00 BMS Control Card

A Dedicated Hub for your Burner

Reliable monitoring of your appliance’s instrumentation and I/O cards that is dedicated to a specific burner, providing real-time input and output status updates.

Key Features:

• Remote start input
• Emergency shutdown input
• Fuel pressure input
• Level/flow input
• PFRN controller network
• External ignition input
• Relay output

Real-Time Status Updates

The PF3101-00 BMS Control Card acts as a hub for all associated I/O cards and instrumentation for a designated burner. Providing accurate, real-time readings for all input/output system behaviors and state transitions based on your specific selections, our control card ensures your system continues to operate efficiently and safely with real-time status updates.

• Remote start input
• Proof of closure input
• Emergency shutdown input
• Fuel pressure input
• Level/flow input
• PFRN controller network
• External ignition input
• Controller power input
• Relay output
• Heating status
• Pilot flame monitor
• Low temperature warning
• Status contact details
• High fire valve solenoid output
• Main valve solenoid output behavior readings
• Pilot valve solenoid output
• Auxiliary 4-20mA output
