PF3100-QP24 CONTROL PANEL

Single-burner control for natural or forced draft appliances, in one integrated panel.

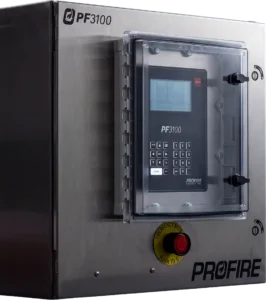

Profire PF3100-QP24 control panel with stainless steel enclosure, display cover open, and emergency stop button.

POWERFUL BURNER MANAGEMENT

Reduce field installation and commissioning time with the PF3100-QP24 BMS Control Panel. This ready-to-install solution brings the PF3100 BMS controller, power supply, and wire marshalling together in one purpose-built enclosure, reducing the internal panel assembly and component integration required on-site. Field teams can move more directly from delivery to final connections, configuration, and startup.

Profire PF3100-QP24 control panel with cabinet door open, showing a single column of control modules, wiring, and power supply.

Why the PF3100-QP24?

The PF3100-QP24 is built around the essential burner management and combustion control functions for common single-burner applications. Its purpose-built, right-sized design provides a practical alternative to a fully custom control panel.

Features:

  • Pre-Configured Options
  • AC or DC Main Valves
  • Single Burner Safety Control
  • Wire Marshalling Area for Field Wiring
  • Event Logging & Diagnostics
  • Corrosion Resistant SS Enclosure
  • Provisioned for UV Flame Detection
  • Integral Power Supply
  • Advanced PID Temperature Control

Close-up inside the Profire PF3100-QP24 control panel showing control modules, terminal blocks, power supply, and door-mounted wiring diagram.

Choose your configuration

Power

PURPOSE-BUILT FOR

  • NATURAL DRAFT / FORCED DRAFT APPLICATIONS
  • UV FLAME DETECTION
  • SINGLE-BURNER CONTROL
  • SIMPLIFIED COMMISSIONING

ESSENTIAL BY DESIGN

INCLUDED IN EVERY PF3100-QP

Powerful burner management and combustion control.

PF3100-QP series capabilities include:

    • Parallel Positioning
    • Fuel/Air Ratio Control
    • O2 Trim
    • Damper Control
    • UV Flame Detection
    • Advanced PID Control
    • Data Logging & Trending
    • Modbus Communication (RS-485)

PF3100 CARDS & FIELD INSTRUMENTATION

PF3100 Cards Included in the Cabinet:

  • User Interface Card
  • BMS Controller Card
  • UV Pilot Card
  • I/O Expansion Card
  • Modbus Card

Required Field Instrumentation

  • HEI or 24VDC Ignition
  • UV Flame Detector
  • Temperature Module
  • Fuel Train Components

CORE APPLICATIONS

  • Amine Reboiler
  • Combustor
    ECD/VDU
  • Glycol Dehydrator
  • Gas Production Unit (GPU)
  • Heater Treater
  • Heated Separator
  • Heated Tank
  • Line Heater
