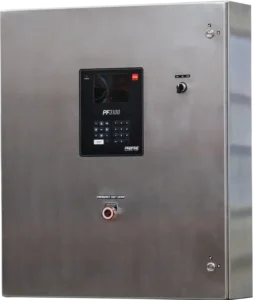

PF3100-QP36 CONTROL PANEL
Dual-burner control for natural or forced draft appliances, in one integrated panel.
POWERFUL DUAL-BURNER CONTROL
Reduce field installation and commissioning time with the PF3100-QP36 BMS Control Panel. This ready-to-install solution brings the PF3100 BMS controller, power supply, and wire marshalling together in one purpose-built enclosure, reducing the internal panel assembly and component integration required on-site. Field teams can move more directly from delivery to final connections, configuration, and startup.
Why the PF3100-E36?
The PF3100-QP36 is built around the essential burner management and combustion control functions for common dual-burner applications. Its purpose-built, right-sized design provides a practical alternative to a fully custom control panel.
Features:
- Pre-Configured Options
- AC or DC Main Valves
- Dual Burner Safety Control
- Wire Marshalling Area for Field Wiring
- Event Logging & Diagnostics
- Corrosion Resistant SS Enclosure
- Redundant UV Flame Detection
- I/O Expansion Capability
- I/O Redundancy
- Multiple Control Loops (O2, FGR, Fuel, and more!)
- Integral Power Supply
- Advanced PID Temperature Control
Choose your configuration
Power
Type
Summary
That combination is not currently available. Please adjust your selections or contact us for help.
PURPOSE-BUILT FOR
- NATURAL DRAFT / FORCED DRAFT APPLICATIONS
- UV FLAME DETECTION
- DUAL-BURNER CONTROL
- SIMPLIFIED COMMISSIONING
ESSENTIAL BY DESIGN
INCLUDED IN EVERY PF3100-QP36
Powerful burner management and combustion control.
PF3100-QP series capabilities include:
-
- Parallel Positioning
- Fuel/Air Ratio Control
- O2 Trim
- Damper Control
- UV Flame Detection
- Advanced PID Control
- Data Logging & Trending
- Modbus Communication (RS-485)
PF3100 CARDS & FIELD INSTRUMENTATION
PF3100 Cards Included in the 36″ Cabinet:
- User Interface Card
- 2 x BMS Controller Card
- 2 x UV Pilot Card
- 2 x I/O Expansion Card
- Modbus Card
- Network Card
Required Field Instrumentation
- HEI or 24VDC Ignition
- UV Flame Detector
- Temperature Module
- Fuel Train Components
CORE APPLICATIONS
-
Amine Reboiler -
Combustor
ECD/VDU -
Glycol Dehydrator -
Gas Production Unit (GPU) -
Heater Treater -
Heated Separator -
Heated Tank -
Line Heater

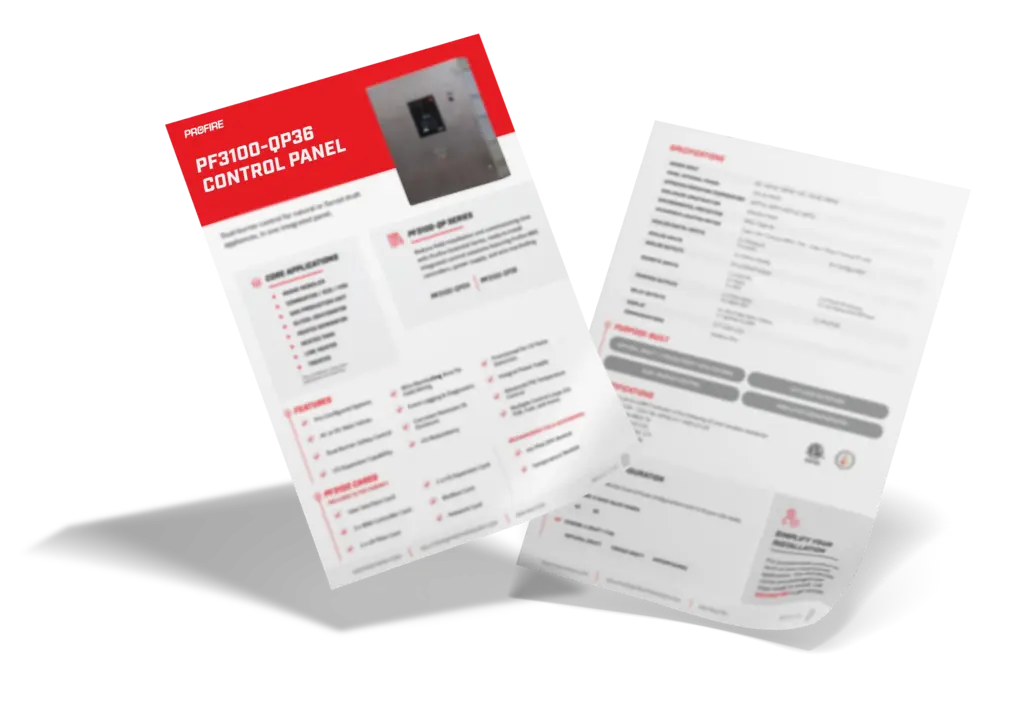

Download the PF3100-QP36 Product Sheet
TELL US ABOUT YOUR APPLICATION
A Profire Specialist Will Contact You Within 24 Hours
