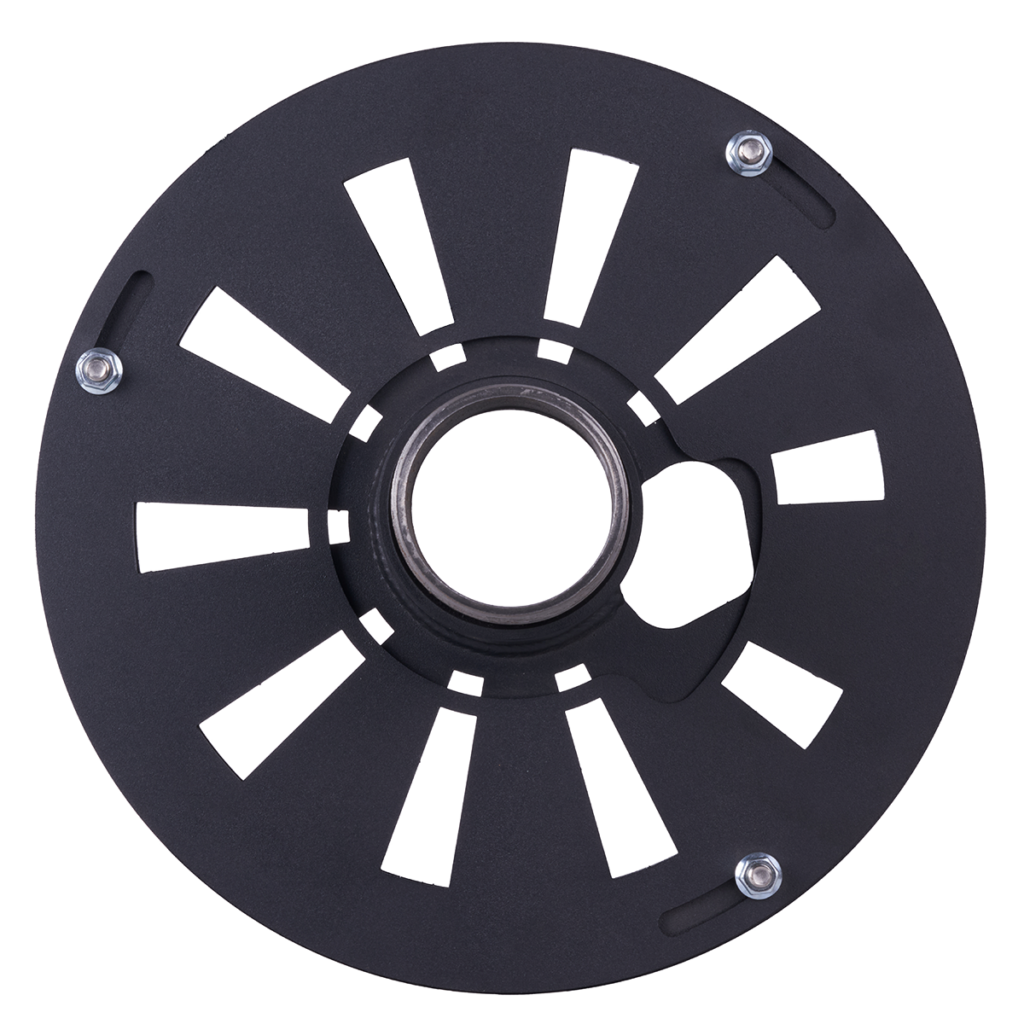

STANDARD AIRPLATE

Dependable, easy-to-install secondary air control that helps reduce fuel use, emissions, maintenance, and flame impingement damage in natural draft heaters.

Profire Airplate Benefits & Features

  • Reliability icon representing Profire's product dependability

    Improve combustion efficiency

  • Industrial solenoid valve icon used in Profire fuel train systems

    Reduce fuel gas consumption

  • Warning caution icon used in Profire product documentation

    Reduce flame impingement

  • Renewable energy icon representing Profire's clean energy compatibility

    Increase firetube life

  • Flexibility icon representing Profire's adaptable system configurations

    Adjust airflow

  • Consistency icon representing Profire's reliable system performance

    Precise pilot positioning

Standard Airplate diagram showing shutter rotation and airflow: fully open at 100%, partially rotated at 50%, and closed at 0%.

HOW THE STANDARD AIRPLATE WORKS

A rotating shutter controls how much secondary air enters the firetube. Set it fully open, fully closed, or anywhere in between to manage airflow to your system’s requirements.

  • Open: 100% airflow
  • Partial: Rotate to reduce airflow (50% shown)
  • Closed: 0% airflow

SIMPLE SECONDARY AIR CONTROL FOR NATURAL DRAFT HEATERS

When a heater pulls in more secondary air than combustion needs, heat goes up the stack instead of into the process. The Standard Airplate lets your team set airflow to match the burner, then adjust it as air density changes through the seasons. With 13 sizes and a wide range of burner connections, it fits most standard firetube heater setups.

Available in Slipstream or Pilot models for 4″ to 36″ firetubes and 0.5″ to 6″ burner connections.

BENEFITS

REDUCE FUEL USE AND MAINTENANCE

  • Improve combustion efficiency after installation and tuning.
  • Reduce fuel gas consumption by optimizing pressure settings.
  • Burn cleaner, with lower emissions and better heat transfer.
  • Extend firetube life by reducing flame impingement.
  • Adjust for seasonal air-density changes.

FEATURES

EASY TO INSTALL, EASY TO ADJUST

  • Rotating shutter for precise, repeatable airflow control.
  • Precise pilot positioning.
  • Wide firetube range available — 4” to 36”.

Download the Standard Airplate Product Spec Sheet
