CV100-V

The Profire V-Port Control Valve combines 4-20mA precision flow control with durable performance.

GET A QUOTE

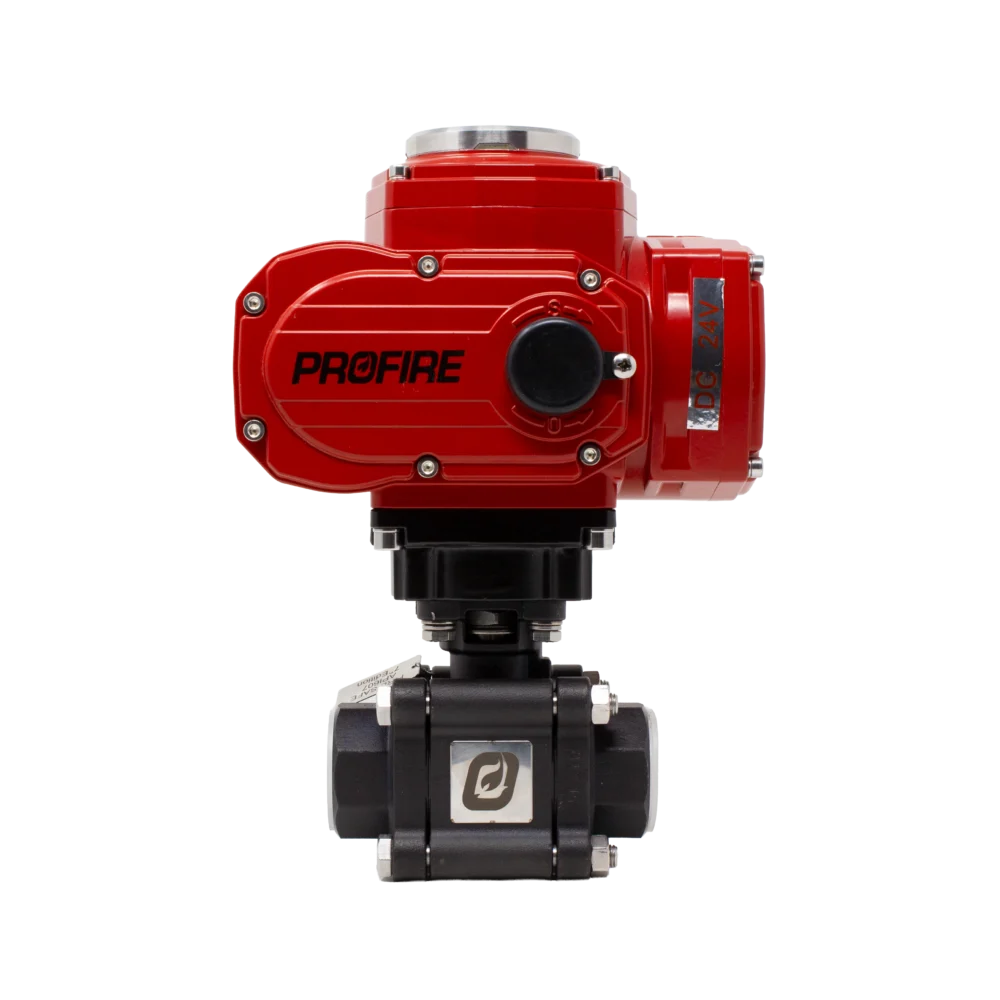

Front view of the Profire CV100-V Control Valve with a red 24 VDC electric actuator mounted on a black threaded ball valve.

BUILT FOR DEMANDING APPLICATIONS

The CV100-V control valve uses an integrated V-notch design to improve flow characteristics with modulating control applications. It’s ideal for the following core industries:

Oil & Gas
Petroleum
Chemical
Pulp & Paper
Mining

GET A QUOTE

Why the CV100-V?

Features:

WCB Carbon Steel Body
TFM^TM – 1600 Valve Seats
Tested in Accordance with API 598
4-20mA Positional Feedback
Modbus-RTU Connectivity
Adjustable Graphite Live Loaded Packing
Die Cast Aluminum Alloy Enclosure
Heavy Duty Motor with Overload Protection (70% Duty Cycle)
100:1 Turndown Ratio
Firesafe Design API607-7th Edition
Pyramidal Stem Packing w/ O-Ring
Internal Case Heater for Condensation Protection
Compact Design
Engineered for Longevity & Safe Operation
Manual Override with End-of-travel Mechanical Stops
Integrated V-Notch Design for Precise Modulating Control
30° and 60° Valve Port Options

GET A QUOTE

Rear three-quarter view of the Profire CV100-V Control Valve showing the finned red electric actuator and black threaded ball valve with process connection.

KEY SPECIFICATIONS

Power Input: 24 VDC
Operating Temperature: -13°F to 131°F (-25°C to +55°C)
Port Options: V3 – V-Port 30° / V6 – V-Port 60°
Electrical Connection Ports: 2 x ½” NPT (threaded)
End Connection: 1” NPT (threaded) ^{*Additional Sizes Available Upon Request}
Size: 0100 – 1″
